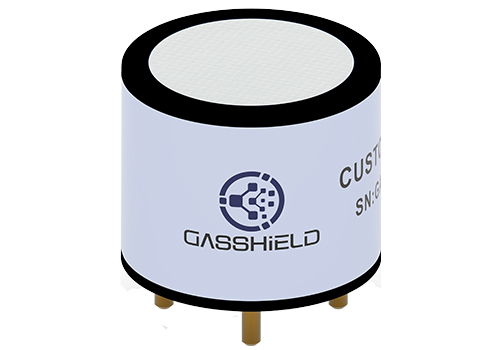

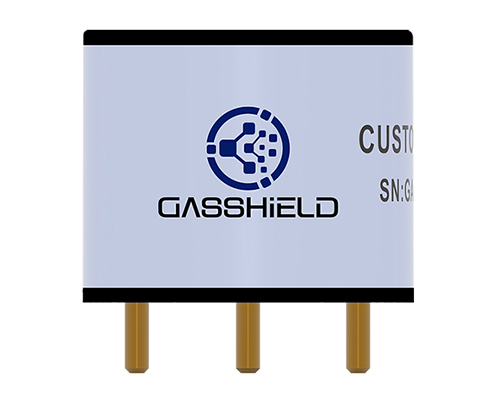

UGT-E4
Customized gas sensor
PERFORMANCE
·Good long-term stability
·Excellent repeatability and linearity
·Extremely fast response speed
·Gas detection and customizable range
·Wide range of application fields
·Long service life
TECHNICAL SPECIFICATION
Measurement Range On demand customization
Detect gas On demand customization
Accuracy ±5%（Individual gases may vary）
Zero Drift ±1%（Individual gases may vary）
Full range deviation ±3%F.S（Individual gases may vary）
Linearity ±3%F.S（Individual gases may vary）
Response time T90＜30s（Individual gases may vary）
Operating Principle Electrochemistry
Operating life 2-3 year（In clean air）
Weight 5g
Standard Warranty 1 year
ENVIRONMENTAL
Operating Temperature Range -20～+50℃
Operating Humidity Range 0～90%RH（No condensation）
Operating Pressure Range 90～110KPa
AAPPLICATIONS
Instrumentation
Iron and Steel Chemical Industry
Industrial safety
Gas leakage
NOTE
Do not directly solder sensor pins；

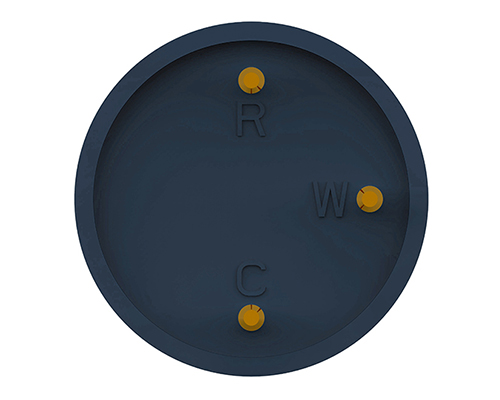

Please connect the electrode feet correctly, otherwise it will affect normal use；
Do not disassemble the sensor to avoid damage；
Recommend using a sensor for 50% range calibration；
Perform zero calibration in pure air；
Customized Gas List
|
Gas |
chemical formula |
Measurement Range |
resolution ratio |
|
Hydrogen fluoride |
HF |
0-10PPM |
0.01PPM |
|
Acid mist |
SW |
0-10PPM |
0.01PPM |
|
Acid gas |
ACID |
0-10PPM |
0.01PPM |
|
Sulfuric acid |
H2SO4 |
0-10PPM |
0.01PPM |
|
Nitric acid |
HNO3 |
0-10PPM |
0.01PPM |
|
Freon |
FREON |
0-100PPM |
1PPM |
|
Acrylonitrile |
C3H3N |
0-100PPM |
0.1PPM |
|
Sulfur Trioxide |
SO3 |
0-100PPM |
0.1PPM |
|
Butanone |
