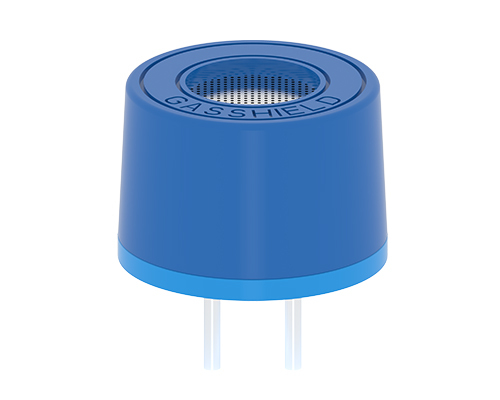

UGT-C2 Commercial combustible gas sensors

UGT-C2 Commercial combustible gas sensors

FEATURES

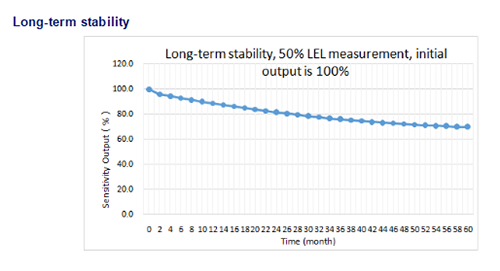

·Good long-term stability

·Excellent repeatability

·Superior linearity

·Strong vibration resistance

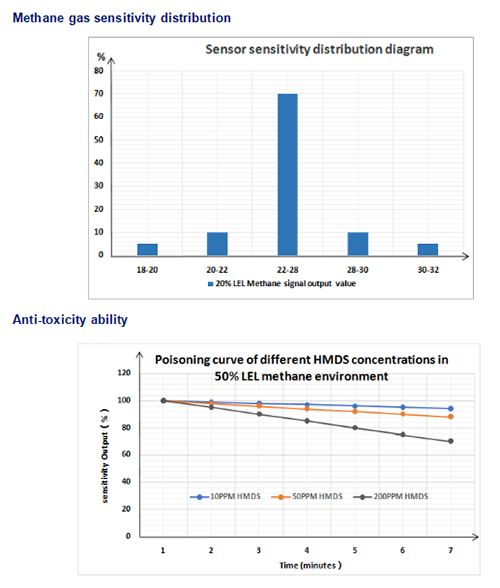

·Excellent anti-poisoning ability

ELECTRICAL

Supply Voltage                      DC2.5±0.1V

Working current                     DC165～195mA(at 2.5V)

Power consumption                 ＜500mW

Zero point output                   ±35mV

Sensitivity                          18～32mV / 20%LEL methane

ENVIRONMENTAL

Operating Temperature Range       -40～+70℃

Operating Humidity Range           Continuity 15～90%RH

                                    Intermittent 0～99%RH

STORAGE ENNIRONMENT

Recommended Storage Temp        -20～+50℃

Relative humidity                    Below 95% RH

                                    (without condensation)

TECHNICAL SPECIFICATION

Measurement Range                0～100%LEL

Gas Detected                       Most combustible gases

Accuracy                           ±3%LEL

Zero drift                           ±1%LEL

Linearity (0～100%LEL)              ±3%(Calibrate at 60%LEL)

Full range deviation                 ±5%LEL

Response time                     50%LEL T90＜10s

Operating Principle                 Catalytic combustion

 Recovery time                       15s

Operating life                       5 years (in clean air)

Warranty period                      2 years(from the date of shipment)

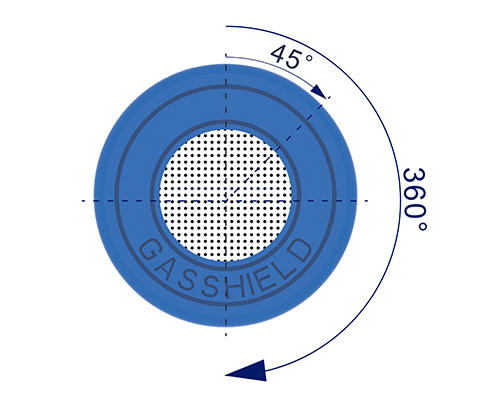

Orientation

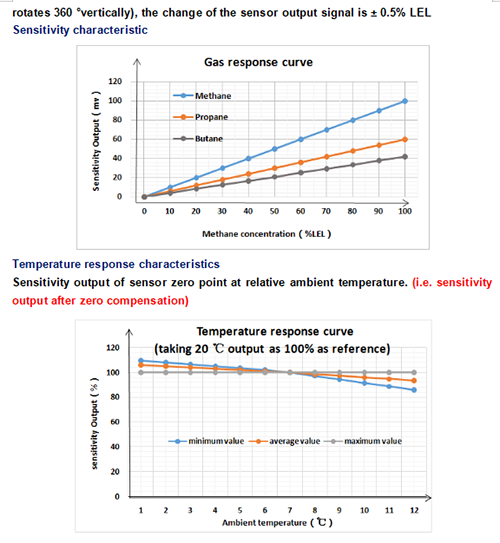

When the orientation of the sensor at the detection

end and compensation end changes (the sensor
