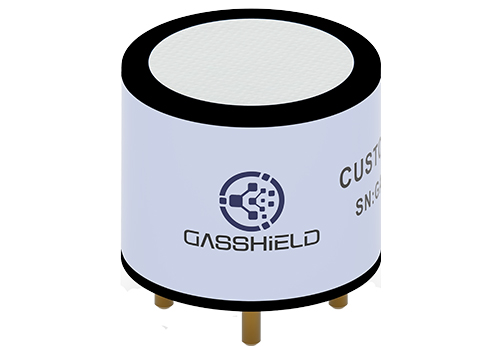

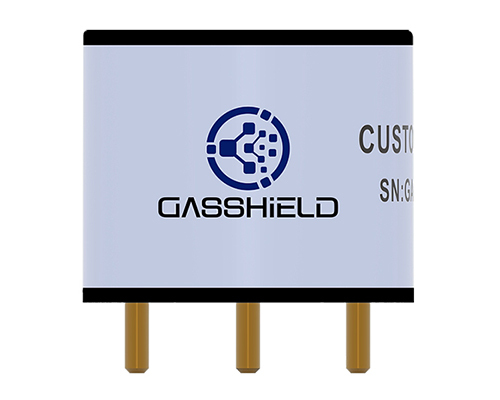

UGT-E4-C2H4 Ethylene Sensor

UGT-E4-C2H4 Ethylene Sensor

product overview

The UGT-E4-C2H4 ethylene gas detection sensor is a constant potential electrolytic sensor, which detects ethylene and oxygen separatelyThe corresponding oxidation-reduction reactions occur on the working electrode and the counter electrode, releasing charges to form a current. The magnitude of the generated current is proportional to the ethylene concentration, and the high or low ethylene concentration can be determined by testing the current magnitude.

Performance characteristics

·High precision, long lifespan

·Fast response speed, fast return to zero

·Low power consumption, high sensitivity

·Wide linear range

·Strong anti-interference ability

·Excellent repeatability and stability

·Numerous application fields

·Small size, high cost-effectiveness

Specification

Detecting gas ethylene

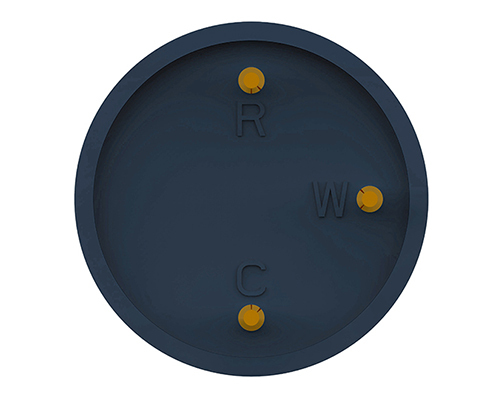

Detection principle: electrochemical three electrode

Detection range 0-100ppm

Maximum load concentration 200PPM

Sensitivity 250 ± 100nA/PPM

Zero drift 0-10PPM

Resolution of 1PPM

Response time T90<120 seconds

Repeatability<± 2% signal value/month

Long term stability<2% signal/month

Linearity and straightness up to 200PPM

Warranty period of 1 year

Service life of 2 years

work environment

Working temperature -30~+50 ℃

Working humidity 15-90% RH (non condensing)

Work pressure 90-110Kpa

Bias voltage+300mV

Load resistance 5-30 Ω

Application Fields

Ethylene detector

Industrial ethylene testing

Ethylene testing in cold storage

Smart municipal ethylene detection
