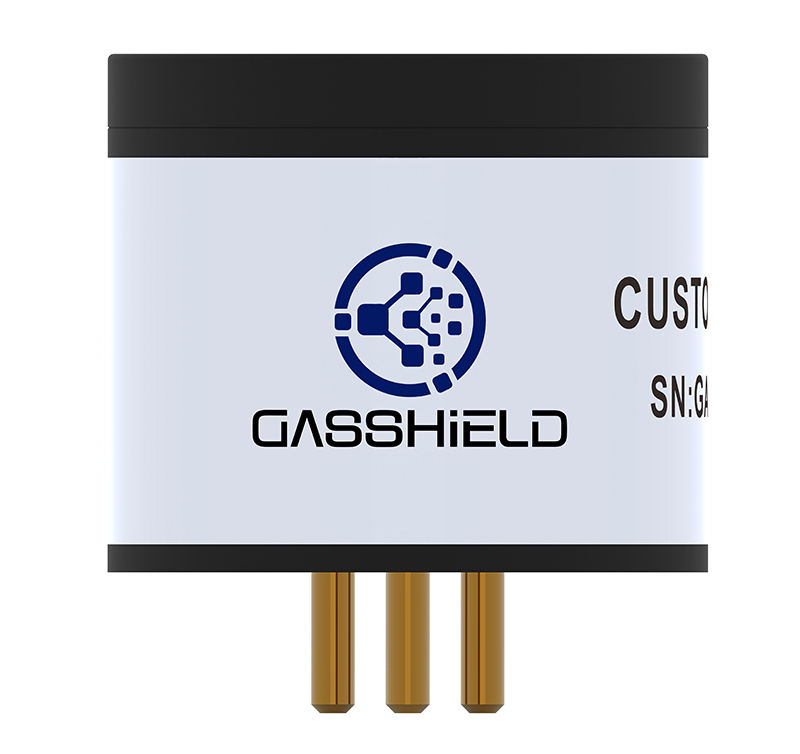

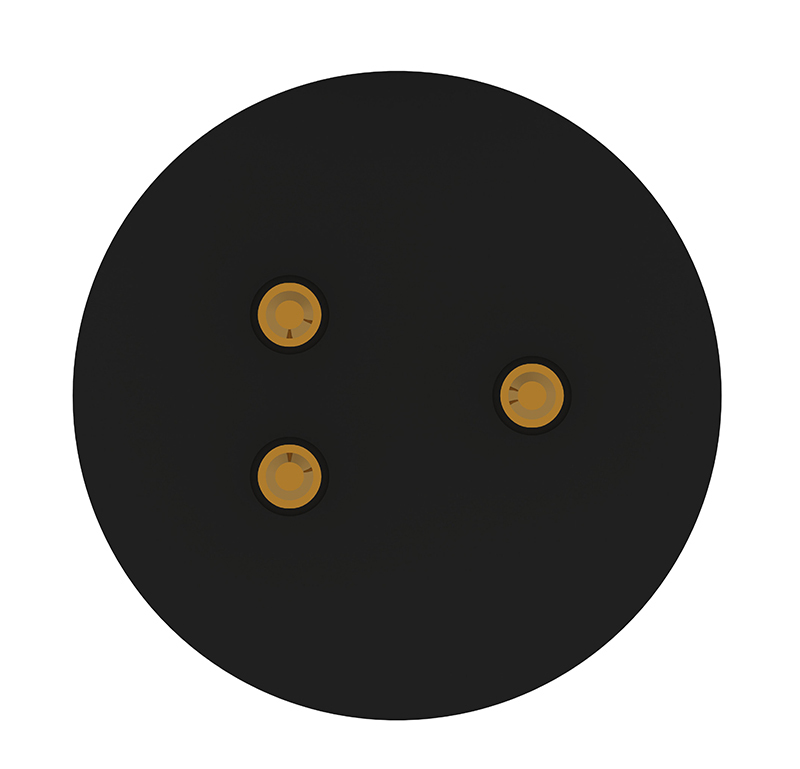

UGT-P4 Customized gas sensor

UGT-P4

Customized gas sensor

 PERFORMANCE

·Good long-term stability

·Excellent repeatability and linearity

·Extremely fast response speed

·Gas detection and customizable range

·Wide range of application fields

·Long service life

TECHNICAL SPECIFICATION

Measurement Range      On demand customization

Detect gas              On demand customization

Accuracy               ±5%（Individual gases may vary）

Zero Drift               ±1%（Individual gases may vary）

Full range deviation        ±3%F.S（Individual gases may vary）

Linearity                  ±3%F.S（Individual gases may vary）

Response time            T90＜30s（Individual gases may vary）

Operating Principle        Electrochemistry

Operating life              2-3 year（In clean air）

Weight                    5g

Standard Warranty         1 year

ENVIRONMENTAL

Operating Temperature Range        -20～+50℃

Operating Humidity Range           0～90%RH（No condensation）

Operating Pressure Range           90～110KPa

AAPPLICATIONS

Instrumentation

Iron and Steel Chemical Industry

Industrial safety

Gas leakage

NOTE

Do not directly solder sensor pins；

Please connect the electrode feet correctly, otherwise it will affect normal use；

Do not disassemble the sensor to avoid damage；

Recommend using a sensor for 50% range calibration；

Perform zero calibration in pure air；

Customized Gas List
