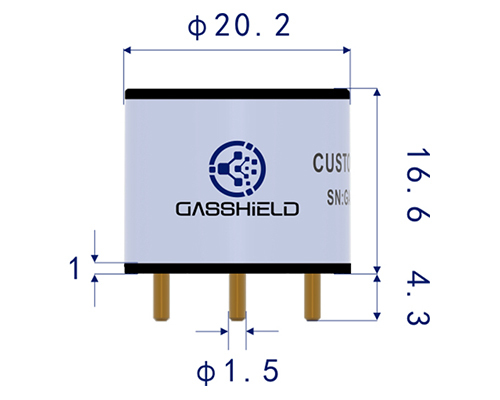

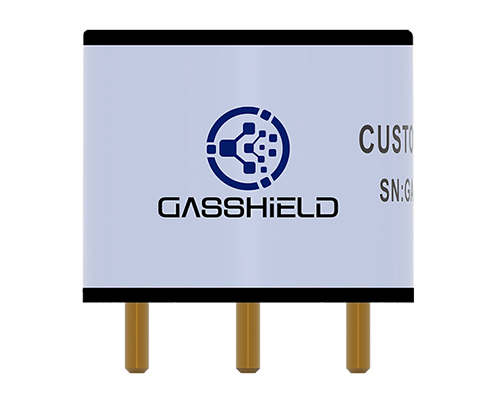

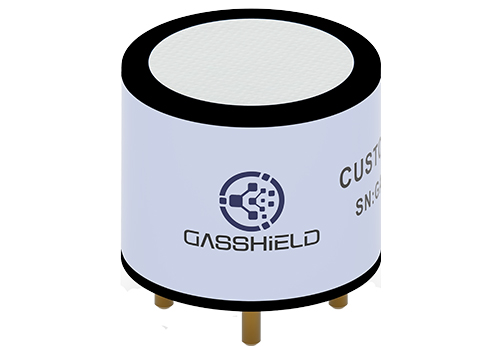

UGT-E4-H2S Hydrogen Sulfide Gas Sensor

UGT-E4-H2S Hydrogen Sulfide Gas Sensor

product overview

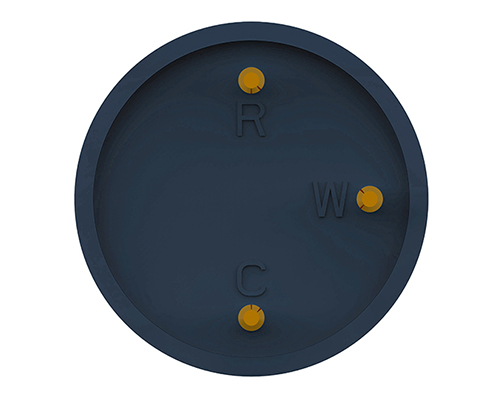

The UGT-E4-H2S hydrogen sulfide gas detection sensor is a constant potential electrolytic sensor. Hydrogen sulfide and oxygen undergo corresponding oxidation-reduction reactions on the working electrode and the counter electrode, respectively, and release charges to form a current. The magnitude of the generated current is proportional to the concentration of hydrogen sulfide. By testing the magnitude of the current, the concentration of hydrogen sulfide can be determined.

Performance characteristics

·High precision, long lifespan

·Fast response speed, fast return to zero

·Low power consumption, high sensitivity

·Wide linear range, strong anti-interference ability

·Excellent repeatability and stability

·Numerous application fields

·Small size, high cost-effectiveness

Specification

Detecting gas hydrogen sulfide

Detection range 0-100ppm

Maximum load concentration 500PPM

Sensitivity 650 ± 20nA/PPM

Resolution of 1PPM

Zero drift ± 2PPM

Linearity and linearity, regression coefficient R ²=0.999

Repetitive 1% output signal

Long term stability<2% signal/month

Response time T90<30s

Technical principle: electrochemistry

Service life 2-3 years (in clean air)

Weight 4.8g

Shelf life of 1 year

work environment

Working temperature -30~+50 ℃

Working humidity 15-90% RH (non condensing)

Work pressure 90-110Kpa

Bias voltage 0

Load resistance 5-30 Ω

Application Fields

Instrumentation

Steel and Chemical Industry

industrial safety

Gas leakage

air purification
