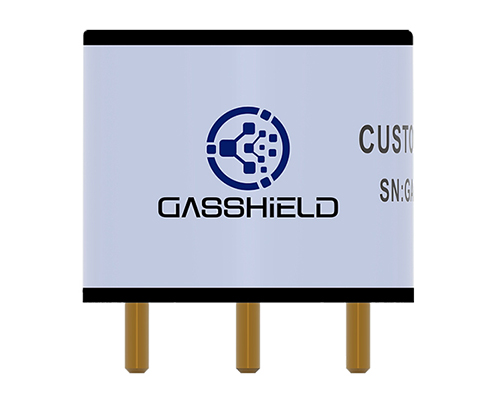

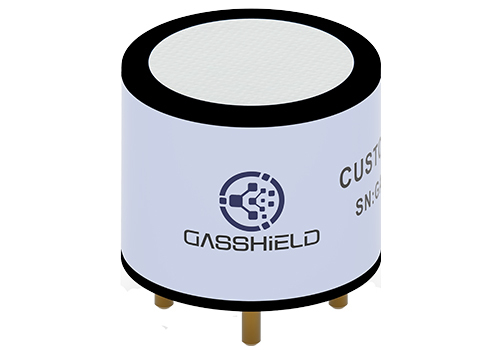

UGT-E4-O3 Ozone Sensor

UGT-E4-O3 Ozone Sensor

product overview

The UGT-E4-O3 ozone gas detection sensor is a constant potential electrolytic sensor. The electrochemical oxidation process of ozone on the working electrode is controlled by an electronic circuit to maintain the working electrode and reference electrode of the electrolyte at an appropriate potential. At this potential, electrochemical oxidation or reduction of ozone can occur. The concentration of the gas to be measured can be determined by measuring the current.

Performance characteristics

·High precision, long lifespan

·Fast response speed, fast return to zero

·Low power consumption, high sensitivity

·Wide linear range

·Strong anti-interference ability

·Excellent repeatability and stability

·Numerous application fields

·Small size, high cost-effectiveness

Specification

Detecting gas ozone

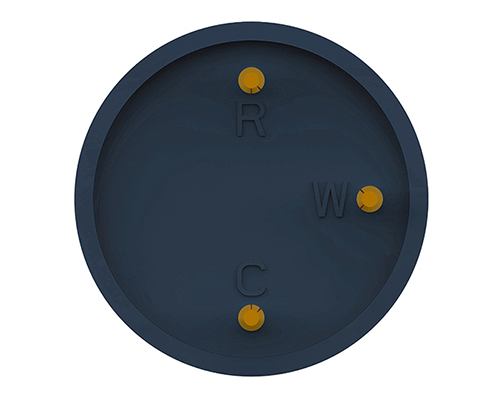

Detection principle: electrochemical three electrode

Detection range 0-20PPM

Maximum load concentration 50PPM

Sensitivity -600 ± 150uA/PPM

Zero drift 0-1PPM

Resolution 0.1PPM

Response time T90<60s

Repeatability<± 2% signal value/month

Long term stability<2% signal/month

Linearity and straightness up to 50PPM

Warranty period of 1 year

Service life of 2 years

work environment

Working temperature -30~+50 ℃

Working humidity 15-90% RH (non condensing)

Work pressure 90-110Kpa

Bias voltage 0

Load resistance 5-30 Ω

Application Fields

ozone generator

Medical ozone disinfection cabinet

Smart municipal ozone detection

Ozone detection in atmospheric environment
