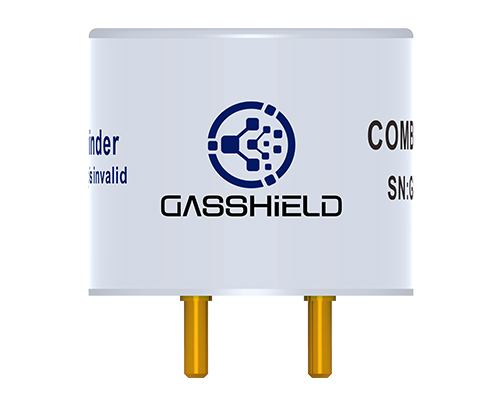

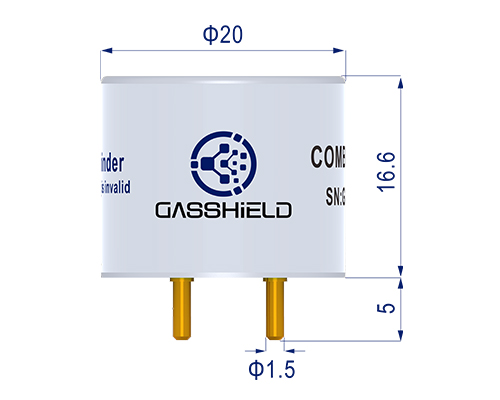

UGT-F6
FEATURES
·Good long-term stability
·Excellent repeatability
·Superior linearity
·Excellent anti-poisoning ability
·Minimum power consumption of 90mA
ELECTRICAL
Supply Voltage DC2.8±0.1V
Working current (at 2.8V) DC90～110mA
Power consumption ＜310mW
Zero point output ±25mV
Sensitivity 18～32mV / 20%LEL methane
ENVIRONMENTAL
Operating Temperature Range -40～+70℃
Operating Humidity Range Continuity 15～90%RH
Intermittent 0～99%RH
Storage environment
Recommended Storage Temp -20～+50℃
Relative humidity Below 95% RH
(without condensation)
TECHNICAL SPECIFICATION
Measurement Range 0～100%LEL
Gas Detected Most combustible gases
& vapours
Accuracy ±3%LEL
Zero drift ±1%LEL
Linearity(0～100%LEL ) ±3%（Calibrate at 60%LEL）
Full range deviation ±5%LEL
Response time 50%LEL T90＜10s
Operating Principle Catalytic combustion
Recovery time 15s
Operating life 5 years (in clean air)
Warranty period 2 years（from the date of shipment）
Orientation
When the orientation of the sensor at the detection
end and compensation end changes (the sensor
rotates 360 °vertically), the change of the sensor output signal is ± 0.5% LEL
able 1 Sensitivity
|
Gas/steam |
Relative sensitivity% |
Gas/steam |
Relative sensitivity% |
|
Methane |
100 |
Isobutanol |
40 |
|
Ammonia |
110 |
Butanone |
40 |
|
Carbon monoxide |
95 |
Diethyl ether |
39 |
|
Hydrogen |
90 |
Heptane |
38 |
|
Carbinol |
71 |
Cyclohexane |
37 |
|
Ethane |
