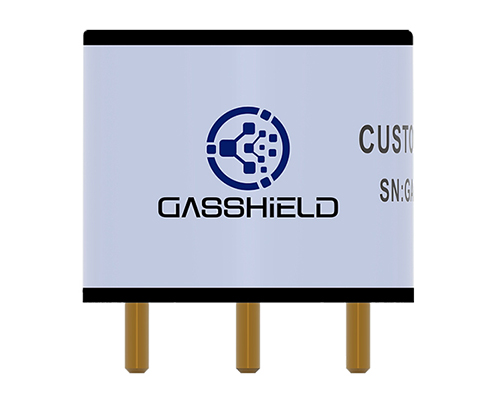

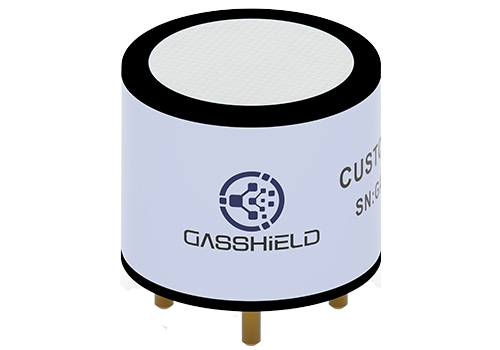

UGT-T4-CH4 Four Series Laser Methane Sensor Probe

UGT-T4-CH4 Four Series Laser Methane Sensor Probe

1、 Product Overview

The UGT-T4-CH4 four series laser methane sensor probe uses tunable laser spectral absorption (TDLAS) technology to accurately measure the target gas. The sensing probe integrates advanced lasers and detectors to achieve high-precision, high-density, and highly reliable miniaturized integrated packaging; The sensing probe adopts an open gas exchange method; The sensing probe adopts excellent optical systems and algorithms, achieving high difficulty and precise measurement, ensuring the advantages of high detection accuracy, fast response, and low power consumption of the sensing probe.

2、 Performance characteristics

·High precision, miniaturization, low power consumption;

·Effective absorption path length, achieving a longer effective absorption path length in small optical systems;

·High reliability, intrinsic anti-interference (non methane gas has no reaction);

·A wide operating voltage (3.3V~5.0V) is used to power TTL serial ports, facilitating secondary integration;

3、 Application Fields

Petroleum, chemical, and mining industries;

Natural gas pipelines, transmission stations, and refueling stations;

Coal mine safety monitoring;

Pipeline leakage monitoring and household natural gas leakage monitoring;

Underground comprehensive pipe gallery, gas leak monitoring, biogas monitoring;

Other related fields of safety supervision and testing;

4、 Technical parameters (for reference only)

explain:

4.1 The specific data format and communication protocol are shown in Annex 1.

4.2 The recommended power-saving mode for this sensor probe is a power supply with a working voltage of 3.6V and a current limit of 300mA to 400mA.

4.3 It is recommended that this product should have protective measures for the shell and proper heat dissipation treatment.
