A type of anti regulatory toxic combustible sensor-UK GASSHIELD

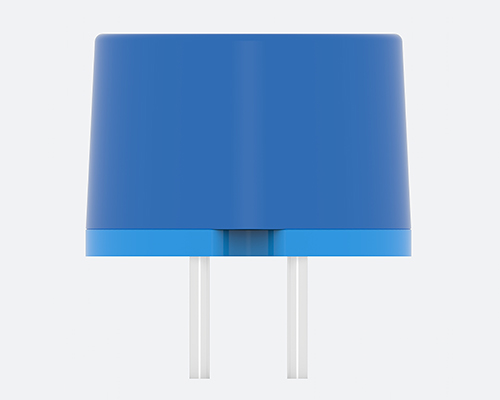

The UGT-C5 combustible sensor is a high-precision, silicon resistant combustible sensor independently developed by Gas Shield GASSHIELD in the UK. The product meets the requirements of the new national standard. Through the improvement of catalytic materials and technological innovation, Gas Shield GASSHIELD has developed products such as the UGT-C5 combustible sensor with epoch-making significance. Compared with all catalytic combustion combustible sensors on the market, the UGT-C5 combustible sensor has high accuracy, long lifespan, and ultra stability, and its outstanding performance in anti poisoning testing is impressive.

Product characteristics

1. Strong vibration resistance

2. Excellent anti poisoning ability

3. Good long-term work stability

4. Excellent repeatability

5. Superior linearity

Technical parameters:

Detection range: 0-100% LEL

Gas detection: Most combustible gases and vapors

Detection accuracy: ± 3% LEL

Zero drift: ± 1% LEL

Full range deviation: ± 5% FS

Linearity: (0-100% LEL) ± 3% (60% LEL calibration)

Response time: 50% LEL T90<10s

Technical principle: catalytic combustion

Recovery time: 15s

Service life: 5 years (in clean air)

Shelf life: 2 years (from the date of shipment)
